Simulated artillery
Self-propelled howitzer decoy
Wheeled self-propelled howitzer decoy with an elevated barrel and detailed turret, matching the gun in the deployed position.
- Scale
- 1:1
- Material
- High-strength composite fabric with nano metallic coating
- Inflation
- Automatic, one-key inflation
- Deployment time
- 5–8 min
01
Gallery
Product gallery
02
Simulated artillery
Product details

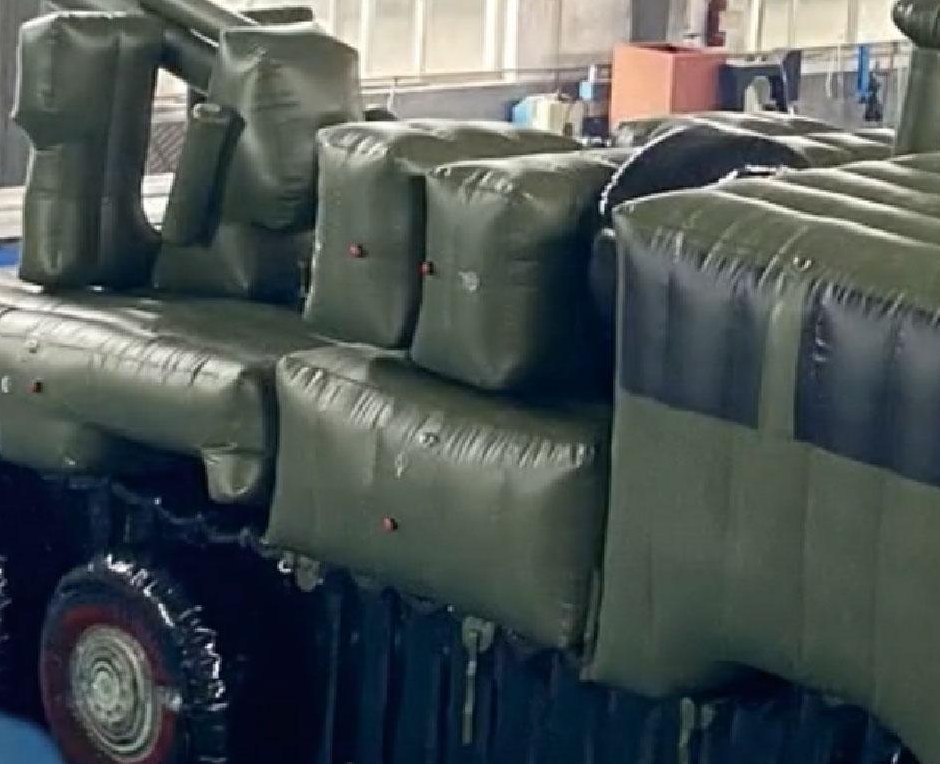

A self-propelled howitzer decoy built around the hull, turret and barrel of the represented system. The barrel is stiffened internally so it stays true over repeated inflations, and the mounting detail around the trunnions is printed so the join between barrel and turret reads correctly at close range.
Artillery decoys cover towed and self-propelled pieces, from howitzers and field guns to rocket artillery and anti-aircraft mounts. Barrels are internally stiffened to keep a straight line over years of repeated inflation, and breech, recoil and sighting detail is reproduced wherever it affects the silhouette.
Key features
- Barrel shown in the elevated position
- Turret and recoil detail modelled
- Deployed by two operators
Typical applications
Artillery decoy position · counter-battery deception · exhibition
03
Technical specifications
Technical specifications
| Scale | 1:1 |
|---|---|
| Material | High-strength composite fabric with nano metallic coating |
| Inflation | Automatic, one-key inflation |
| Deployment time | 5–8 min |
| Operating crew | 2 |
| Options | Motorised turret and barrel rotation |
04
Simulated artillery
What is included
- Gun or launcher hull with printed camouflage
- Barrel and recoil assembly sections
- Electric inflation blower
- Guy lines with ground anchors
- Repair patch kit and adhesive
- Transit and storage bag
- Operation and maintenance manual
05
Simulated artillery
Deployment
-
Lay out the battery position
Mark the gun pits and the ammunition and command vehicle positions so the layout matches real doctrine.
-
Inflate the hulls
Unroll each gun hull on its pit outline and inflate to working pressure — about 1 minute for small guns.
-
Fit barrels
Attach the barrel and recoil sections and set the elevation the scenario calls for.
-
Anchor
Tension the guy lines and drive the anchors, paying attention to the barrel end where wind load is highest.
-
Fit coating options
Apply the radar-reflective and infrared options if the position has to defeat technical reconnaissance.
-
Recover
Remove barrels, deflate, fold and stow — several guns fit in one vehicle load.
06
Simulated artillery
Frequently asked questions
Questions buyers ask about the Self-propelled howitzer decoy.
Which guns and launchers can be reproduced?
Towed and self-propelled howitzers, vehicle-mounted gun-howitzers, rocket artillery such as the BM-21, and anti-aircraft guns. Barrel length, recoil assembly, mount and carriage detail are taken 1:1 from the real equipment.
How quickly can a gun position be established?
About 1 minute for the smallest towed guns, 5 to 15 minutes for the larger self-propelled and rocket systems and their support vehicles.
How big is it when packed?
The packed volume for a complete gun decoy is around 1 m³, so several decoys can be carried on one light vehicle and deployed as a battery position.
How long does it survive in the field?
The fabric is rated for more than 200 inflation cycles in extreme conditions, with field repair from the supplied patch kit.
Does it defeat radar and thermal reconnaissance?
Yes. The special coating gives an adjustable radar return and an infrared treatment matched to the equipment, so the position reads on both radar and thermal imaging.
Can a full battery be simulated?
Yes. Guns, ammunition vehicles and command vehicles can be ordered as one set with consistent camouflage and signatures, so counter-battery reconnaissance sees a complete firing position.
Can it carry a specific unit's markings?
Yes. Camouflage schemes, unit numbers, national markings and stencil text are printed to order from your references.
07
Simulated artillery
Ordering and delivery
- Minimum order
- From 1 set — mixed models can share one container
- Sample lead time
- 72 hours for stock patterns
- Documentation
- Bid documents, test reports and certificate of origin
- Customisation
- Camouflage, unit markings, insignia and signature options
- Service life
- Over 200 inflation cycles in field conditions
- Lead time & payment
- Lead time and payment terms confirmed on enquiry
Tell us the platforms you need to simulate and we will confirm specification, lead time and payment terms in writing.
